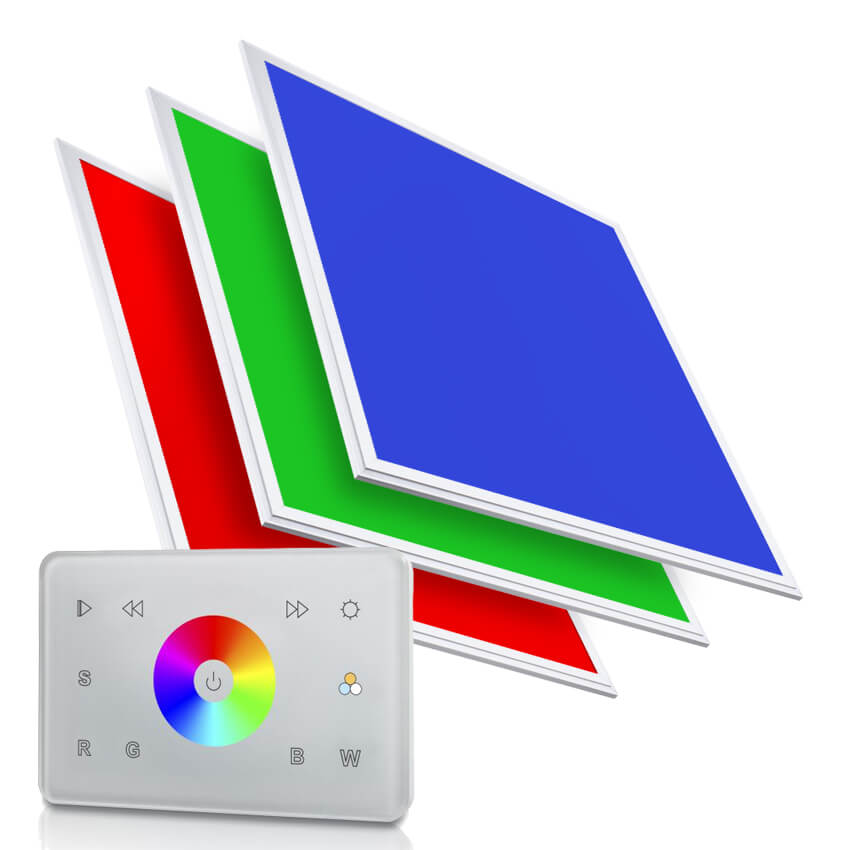

RGBW LED Panels (Chromotherapy)

The RGBW LED is a lighting technology specially designed for use in MRI exam rooms and surgery rooms.

It is produced in a LED panel form factor, it has no UV, IR or RF emissions and is unaffected by magnetic fields. Thanks to these features, it can be installed in the false ceiling of an MRI room.

Chromotherapy, also known as colour therapy, is a method which uses light in the form of colour to balance energy lacking from a person’s body. Colour is a fundamental element of environmental design. It is linked to psychological, physiological, and social reactions of human beings, as well as aesthetic and technical aspects of human-made environments.

Colour in an Healthcare environment can be of great aid for the patient’s relief and mood during medical treatment and diagnostics. Our RGBW LED system allows to change colours in the MRI exam room through a touchscreen and achieve thus a better overall patient experience.

Features

  • Body and frame in aluminum for optimized heat dissipation

  • Extruded polymer opal diffuser
  • Suspension, ceiling or recessed mounting
  • Dimmable driver

  • Photo-biological risk: exempt group

  • Maintenance-free

  • No interference with MRI imaging

  • Low-power and high illuminating efficiency device

Specifications

Mechanical Features
Light Source 5050 SMD LED
Degree of Protection IP20 (IP65 on request)
Dimensions 595mm x 595mm x 10mm
Weight 4,7 Kg
Body Aluminum
Finishes White
Lente PMMA
Electrical Features
Voltage 24 VDC
Power 48 Watt
Photometric Features
Color RGBW
Luminous Flux 3200 lm
Angle Light 120°
Duration 50.000 h
