Our company provides you with different types of Faraday Cages, according to your MRI machine and the site’s specific installment requirements:

Faraday cage

Open Shielding Box (OSB)

for Low-Medium Field Open MR Systems

READ MORE
Faraday cage

Closed Shielding Box (CSB)

for Medium and High Field MRI Systems

READ MORE
Faraday cage

Welded Shielding Box (WSB)

for High-Ultra High Field MRI and Intraoperative MRI

READ MORE
Faraday cage

Multi Shielding Box (MSB)

for High Field MRI and PET/MRI

READ MORE

The manual door of the enclosures is typically made of aluminum and is specifically designed to resist demanding operational conditions without suffering structural deflections. Special care is given to the “sticky-fingers” contacts around the perimeter of the door, which guarantee shielding effectiveness, being properly protected to avoid tampering and accidental failures. Furthermore, the door has a 180° opening, thus facilitating access of stretchers in the MRI room. It is lightweight, easily operable, requires low maintenance and has excellent shielding characteristics. Automatic doors made of non-magnetic stainless steel are also available for MSB and WSB versions.

The operator window (not needed for the OSB version) is manufactured with a double layer of steel mesh within a metal frame with associated glass panels for extra protection. This construction minimizes the moiré pattern distortion and guarantees transparent-like views. Dimming windows are also available.

The Faraday cages are provided with electric and lighting system, helium pipe (where needed) and a set of accessories that make patient’s imaging experience more comfortable such as CCTV, intercom-systems, LED lights, visual therapy panels, video-projectors, audio systems.

Accessories

Multi Shielding Box

Faraday cage for High Field MRI and PET/MRI Systems

Faraday cage

Proven quality at affordable costs

The most complete multi-layer shielding capabilities for different end user’s need

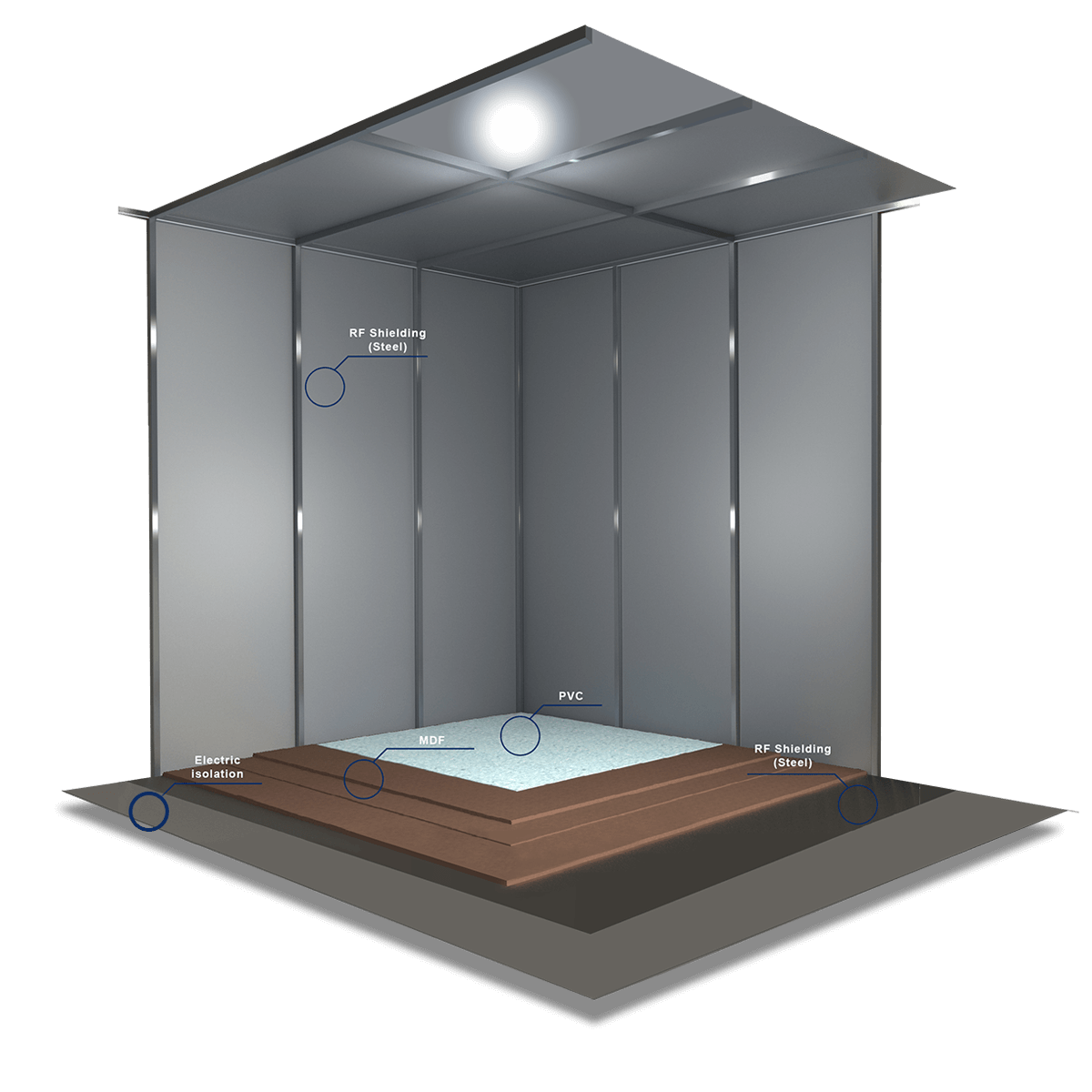

The Multi Shielding Box (MSB) is an EMI/RFI shielding enclosure (Faraday cage) used in MRI installations. It is realized with modular RF-shielding panels and offers the most complete multi-layer shielding capabilities for different end user’s needs.

By using predefined standard size RF panels, made of amagnetic stainless steel and bolted in a rigid, self-standing, flexible to mount structure, the MSB allows a cost effective shielding of the MR equipment, yet guaranteeing state-of-the-art and proven quality of the RF shielding and noise suppression.

Optional shielding layers can be added to the enclosure to provide magnetic shielding, increased acoustic shielding and ionizing radiations shielding, as in the case of the MRI/PET systems.

Interior finishing panels and accessories complete the functional features of the MSB with aesthetic and relaxing appearance for the comfort of patient and operator.

  • Compatible with all MRI devices on the market

  • Self-standing, easy-to-install, modular bolted structure

  • Fast installation time

  • RFI shielding attenuation: 100 dB (5 MHz ÷ 1 GHz range)

  • STC 35 noise suppression (STC 50 on request)

  • Re-usable in case of equipment replacement or upgrade

  • Magnetic shielding available on request according to site requirements

  • Ionizing radiation shielding available on request

  • Vibration suppression available on request

  • High field MRI

  • MRI/PET systems

RF Shielding Material Amagnetic Stainless Steel
RF Shielding Assembly Type Bolted
RF Shielding Attenuation 100 dB (5 MHz ÷ 1 GHz Range)
Door Stainless Steel, pneumatic, hinged
Magnetic Shielding Available on request according to site requirements
Ionizing Radiation Shielding Available on request according to site requirements
Acoustic Noise Suppression STC 35 (STC 50 on request)
Observation Window Included (size based on cage size, dimming window available on request)
MRI Antivibrational System Available on request
Helium Vent Pipe Frame Included (vent pipe available on request)
MRI Penetration Panel Frame Included
Internal Utilities Penetration Panel Included (customizable according to required accessories)
Electric System and Cabling According to custom needs
Lighting System White LEDs  (RGB LED available on request)
Ventilation System 2 Honeycomb Filters, Included (additional filters available on request for larger cages)

Flexible air ducts and Diffusers (according to cage size)

Wall Panels Particle board with White melammine finishing (other colours available on request)
Floor Medium-density Fibreboard/Steel with PVC finishing.
Ceiling Factory painted stone wool tiles (White)
Door, external and internal side Plywood with Standard Medical Blue melammine finishing (White available on request)

A wide range of accessories for interior finishing is available, please see here.

Closed Shielding Box

Faraday Cage for Medium and High Field MRI Systems

Faraday cage

Proven quality noise suppression

It is realized with modular RF-shielding panels and offers advanced shielding capabilities

The Closed Shielding Box (CSB) is an EMI/RFI shielding enclosure (Faraday Cage) used in MRI installations. It is realized with modular RF-shielding panels and offers advanced shielding capabilities for different end user’s needs.

The CSB allows a state-of-the-art and proven quality of the RF shielding and noise suppression. By using a mix of predefined standard size and custom RF panels, made of aluminum and bolted in a rigid, self-standing, flexible to mount structure, the CSB can be adapted to all sizes of the MRI room.

Optional shielding layers can be added to the enclosure to provide magnetic shielding and increased acoustic shielding.

Interior finishing panels and accessories complete the functional features of the CSB with aesthetic and relaxing appearance for the comfort of patient and operator.

  • Compatible with most MRI devices on the market

  • Self-standing, easy-to-install, modular bolted structure

  • Fast installation time

  • RFI shielding attenuation: 100 dB (5 MHz ÷ 200 MHz range)

  • STC 35 noise suppression (STC 50 on request)

  • Re-usable in case of equipment replacement or upgrade

  • Magnetic shielding available on request according to site requirements

  • Vibration suppression available on request

  • High and medium field MRI

RF Shielding Material Aluminum
RF Shielding Assembly Type Bolted
RF Shielding Attenuation 100 dB (5 MHz ÷ 200 MHz Range)
Door Aluminum, manual, hinged (sliding or pneumatic version available on request)
Magnetic shielding available on request according to site requirements
Acoustic Noise Suppression STC 35 (STC 50 on request)
Observation Window Included (size based on cage size, dimming window available on request)
MRI Antivibrational System Available on request
Helium Vent Pipe Frame Included (vent pipe available on request)
MRI Penetration Panel Frame Included
Internal Utilities Penetration panel Included (customizable according to required accessories)
Electric System and Cabling According to custom needs
Lighting System White LEDs  (RGB LED available on request)
Ventilation System 2 Honeycomb Filters, Included (additional filters available on request for larger cages)

Flexible air ducts and Diffusers (according to cage size)

Wall Panels Particle board with White melammine finishing (other colours available on request)
Floor Plywood/Aluminum with PVC finishing. Please see Accessories for PVC colours
Ceiling Factory painted stone wool tiles (White)
Door, external side Factory painted, Standard Medical White or Blue
Door, internal side Plywood with Standard Medical White or Blue melammine finishing on manual door (other colours available on request)

A wide range of accessories for interior finishing is available, please see here.

Open Shielding Box

Faraday Cage for Low-Medium Field Open MR Systems

Faraday cage

Adaptable to all sizes of the MRI room

The aluminium panels allow direct visual and verbal contact with the patient.

The Open Shielding Box (OSB) is an EMI/RFI shielding enclosure (Faraday Cage) used for low-medium field open MRI installations (up to 0.4 T). It is realized with modular RF-shielding panels and offers a cost effective shielding for different end user’s needs.

The OSB allows a state-of-the-art and proven quality of the RF shielding. By using a mix of predefined standard size and custom RF panels, made of powder-coated aluminum and bolted in a rigid, self-standing, flexible to mount structure, the OSB can be adapted to all sizes of the MRI room. Fast installation time (2 days on average) and possibility of relocating the enclosure complete the functional features of the OSB.

The aluminium panels are perforated and create a “hear-through” and “see-through” environment, so eliminating patients’ sense of confinement and feeling of anxiety that may occur in traditional shielding rooms and enhancing communication between patient and operator.

Moreover, self-supporting and perforated panels do not require attachments to the parent building or dedicated ventilation-lighting systems, thus lowering the total cost of ownership of the MRI site.

  • Compatible with most open MRI devices on the market

  • Self-standing, easy-to-install, modular bolted structure

  • Fast installation time (2 days on average)

  • RFI shielding attenuation: 80 dB (5 MHz ÷ 200 MHz range)

  • Re-usable and relocatable in case of equipment replacement or upgrade

  • Magnetic shielding available on request according to site requirements

  • Low and medium field MRI

RF Shielding Material Light Blue or White, Powder Coated, Perforated Aluminum
RF Shielding Assembly Type Bolted
RF Shielding Attenuation 80 dB (5 MHz ÷ 200 MHz Range)
Door Light Blue or White, Powder Coated, Perforated Aluminum, manual, hinged (sliding version available)
Magnetic shielding Available on request according to site requirements
MRI Penetration Panel Frame Included
Internal Utilities Penetration panel Included (customizable according to required accessories)
Electric System and Cabling According to custom needs
Lighting System White dichroic halogen 50 W bulbs
(number according to custom needs);RGB LED available on request
Wall Panels, Ceiling and Door Light Blue or White, Powder Coated, Perforated Aluminum
Floor Plywood/Aluminum with PVC finishing.

A wide range of accessories for interior finishing is available, please see here.

Welded Shielding Box

Faraday Cage for High, Ultra High Field MRI and Intraoperative MRI Systems

Faraday cage

The best shielding performance

he tailor-made type of assembly allows adapting the shielding to virtually any shape and size of room.

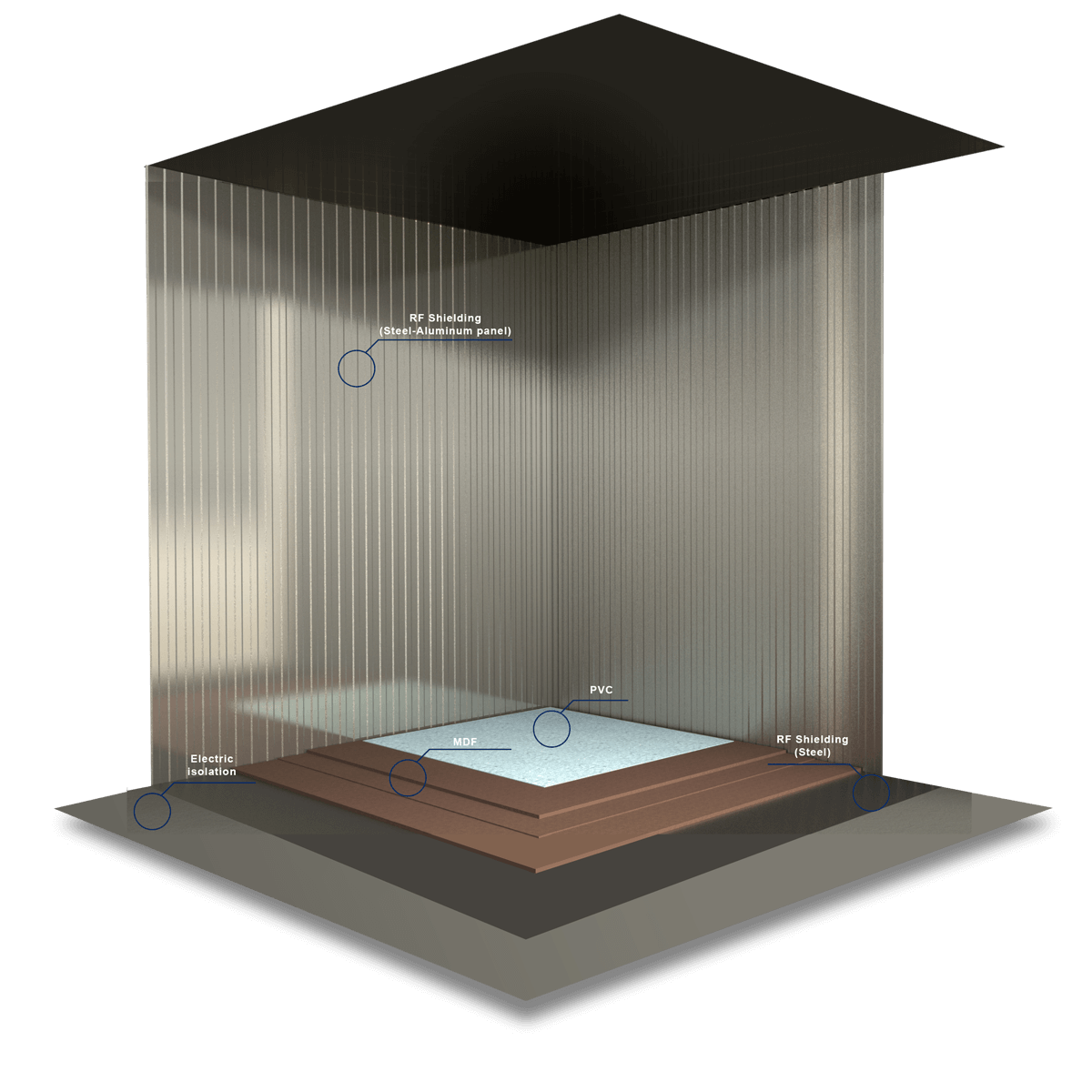

The Welded Shielding Box (WSB) is an EMI/RFI shielding enclosure (Faraday Cage) used in MRI installations. It is realized with custom RF-shielding panels and offers the best RF shielding and noise suppression capabilities for the most challenging end user’s needs.

The WSB panels are made of a double Aluminum-Amagnetic Stainless Steel layer, internally padded with polyurethane for basic noise suppression, welded together, thus creating a rigid, self-standing structure.

The tailor-made type of assembly allows adapting the shielding to virtually any shape and size of room. The on-site cutting and assembly does not require any customization activity in the factory.

This feature enables to use this enclosure also in operating rooms for Intraoperative MRI systems.

Optional shielding layers can be added to the enclosure to provide ionizing radiation shielding, magnetic shielding and increased acoustic shielding.

Interior finishing panels and accessories complete the functional features of the WSB with aesthetic and relaxing appearance for the comfort of patient and operator.

  • Compatible with all MRI devices on the market

  • Self-standing, on-site welded structure

  • Tailor-made assembly, adapts to any shape and size of the MRI room directly on-site (no factory customization required)

  • RFI shielding attenuation: 100 dB (5 MHz ÷ 1 GHz range)

  • STC 35 noise suppression (STC 50 on request)

  • Magnetic shielding available on request according to site requirements

  • Ionizing radiation shielding available on request

  • Vibration suppression available on request

  • High Field and Ultra High Field MRI

  • Intraoperative MRI (iMRI)

RF Shielding Material Aluminum/Poliurethane/Amagnetic Stainless Steel
RF Shielding Assembly Type Welded
RF Shielding Attenuation 100 dB (5 MHz ÷ 1 GHz Range)
Door Aluminum, manual (hinged or pneumatic versions available on request)
Magnetic Shielding Available on request according to site requirements
Ionizing Radiation Shielding Available on request according to site requirements
Acoustic Noise Suppression STC 35 (STC 50 on request)
Observation Window Included (size based on cage size, dimming window available on request)
MRI Antivibrational System Available on request
Helium Vent Pipe Frame Included (vent pipe available on request)
MRI Penetration Panel Frame Included
Internal Utilities Penetration Panel Included (customizable according to required accessories)
Electric System and Cabling According to custom needs
Lighting System White LEDs  (RGB LED available on request)
Ventilation System 2 Honeycomb Filters, Included (additional filters available on request for larger cages)

Flexible air ducts and Diffusers (according to cage size)

Wall Panels Particle board with White melammine finishing (other colours available on request)
Floor Medium-density Fibreboard/Steel with PVC finishing. Please see Accessories for PVC colours
Ceiling Factory painted stone wool tiles (White)
Door, external side Factory painted, Standard Medical White or Blue
Door, internal side Plywood with Standard Medical White or Blue melammine finishing on manual door (other colours available on request)

A wide range of accessories for interior finishing is available, please see here.
